可综合的Verilog FIFO存储器

This example describes a synthesizable implementation of a FIFO. The FIFO depth and FIFO width in bits can be modified by simply changing the value of two parameters, `FWIDTH and `FDEPTH. For this example, the FIFO depth is 4 and the FIFO width is 32 bits. The input/output ports of the FIFO are shown in Figure F-1.

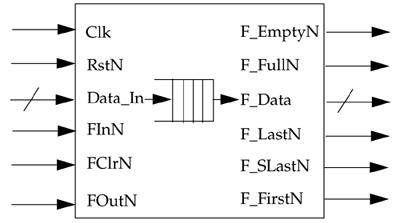

Figure F-1. FIFO Input/Output Ports

Input ports

All ports with a suffix "N" are low-asserted.

Clk— Clock signal

RstN— Reset signal

Data_In— 32-bit data into the FIFO

FInN— Write into FIFO signal

FClrN— Clear signal to FIFO

FOutN— Read from FIFO signal

Output ports

F_Data— 32-bit output data from FIFO

F_FullN— Signal indicating that FIFO is full

F_EmptyN— Signal indicating that FIFO is empty

F_LastN— Signal indicating that FIFO has space for one data value

F_SLastN— Signal indicating that FIFO has space for two data values

F_FirstN— Signal indicating that there is only one data value in FIFO

The Verilog HDL code for the FIFO implementation is shown in Example F-1.

Example F-1 Synthesizable FIFO Model

////////////////////////////////////////////////////////////////////

// FileName:"Fifo.v"

// Author:Venkata Ramana Kalapatapu

// Company :Sand Microelectronics Inc.

//(now a part of Synopsys, Inc.),

// Profile :Sand develops Simulation Models, Synthesizable Cores and

//Performance Analysis Tools for Processors, buses and

//memory products.Sand's products include models for

//industry-standard components and custom-developed models

//for specific simulation environments.

//

////////////////////////////////////////////////////////////////////

`defineFWIDTH32// Width of the FIFO.

`defineFDEPTH4// Depth of the FIFO.

`defineFCWIDTH2// Counter Width of the FIFO 2 to power

// FCWIDTH = FDEPTH.

module FIFO(Clk,

RstN,

Data_In,

FClrN,

FInN,

FOutN,

F_Data,

F_FullN,

F_LastN,

F_SLastN,

F_FirstN,

F_EmptyN

);

inputClk;// CLK signal.

inputRstN;// Low Asserted Reset signal.

input [(`FWIDTH-1):0]Data_In;// Data into FIFO.

inputFInN;// Write into FIFO Signal.

inputFClrN;// Clear signal to FIFO.

inputFOutN;// Read from FIFO signal.

output [(`FWIDTH-1):0]F_Data;// FIFO data out.

outputF_FullN;// FIFO full indicating signal.

outputF_EmptyN; // FIFO empty indicating signal.

outputF_LastN;// FIFO Last but one signal.

outputF_SLastN; // FIFO SLast but one signal.

outputF_FirstN; // Signal indicating only one

// word in FIFO.

regF_FullN;

regF_EmptyN;

regF_LastN;

regF_SLastN;

regF_FirstN;

reg[`FCWIDTH:0]fcounter; //counter indicates num of data in FIFO

reg[(`FCWIDTH-1):0]rd_ptr;// Current read pointer.

reg[(`FCWIDTH-1):0]wr_ptr;// Current write pointer.

wire[(`FWIDTH-1):0]FIFODataOut; // Data out from FIFO MemBlk

wire[(`FWIDTH-1):0]FIFODataIn;// Data into FIFO MemBlk

wireReadN= FOutN;

wireWriteN = FInN;

assign F_Data= FIFODataOut;

assign FIFODataIn = Data_In;

FIFO_MEM_BLK memblk(.clk(Clk),

.writeN(WriteN),

.rd_addr(rd_ptr),

.wr_addr(wr_ptr),

.data_in(FIFODataIn),

.data_out(FIFODataOut)

);

// Control circuitry for FIFO. If reset or clr signal is asserted,

// all the counters are set to 0. If write only the write counter

// is incremented else if read only read counter is incremented

// else if both, read and write counters are incremented.

// fcounter indicates the num of items in the FIFO. Write only

// increments the fcounter, read only decrements the counter, and

// read && write doesn't change the counter value.

always @(posedge Clk or negedge RstN)

begin

if(!RstN) begin

fcounter<= 0;

rd_ptr<= 0;

wr_ptr<= 0;

end

else begin

if(!FClrN ) begin

fcounter<= 0;

rd_ptr<= 0;

wr_ptr<= 0;

end

else begin

if(!WriteN && F_FullN)

wr_ptr <= wr_ptr + 1;

if(!ReadN && F_EmptyN)

rd_ptr <= rd_ptr + 1;

if(!WriteN && ReadN && F_FullN)

fcounter <= fcounter + 1;

else if(WriteN && !ReadN && F_EmptyN)

fcounter <= fcounter - 1;

end

end

end

// All the FIFO status signals depends on the value of fcounter.

// If the fcounter is equal to fdepth, indicates FIFO is full.

// If the fcounter is equal to zero, indicates the FIFO is empty.

// F_EmptyN signal indicates FIFO Empty Status. By default it is

// asserted, indicating the FIFO is empty. After the First Data is

// put into the FIFO the signal is deasserted.

always @(posedge Clk or negedge RstN)

begin

if(!RstN)

F_EmptyN <= 1'b0;

else begin

if(FClrN==1'b1) begin

if(F_EmptyN==1'b0 && WriteN==1'b0)

F_EmptyN <= 1'b1;

else if(F_FirstN==1'b0 && ReadN==1'b0 && WriteN==1'b1)

F_EmptyN <= 1'b0;

end

else

F_EmptyN <= 1'b0;

end

end

// F_FirstN signal indicates that there is only one datum sitting

// in the FIFO. When the FIFO is empty and a write to FIFO occurs,

// this signal gets asserted.

always @(posedge Clk or negedge RstN)

begin

if(!RstN)

F_FirstN <= 1'b1;

else begin

if(FClrN==1'b1) begin

if((F_EmptyN==1'b0 && WriteN==1'b0) ||

(fcounter==2 && ReadN==1'b0 && WriteN==1'b1))

F_FirstN <= 1'b0;

else if (F_FirstN==1'b0 && (WriteN ^ ReadN))

F_FirstN <= 1'b1;

end

else begin

F_FirstN <= 1'b1;

end

end

end

// F_SLastN indicates that there is space for only two data words

//in the FIFO.

always @(posedge Clk or negedge RstN)

begin

if(!RstN)

F_SLastN <= 1'b1;

else begin

if(FClrN==1'b1) begin

if( (F_LastN==1'b0 && ReadN==1'b0 && WriteN==1'b1) ||

(fcounter == (`FDEPTH-3) && WriteN==1'b0 && ReadN==1'b1))

F_SLastN <= 1'b0;

else if(F_SLastN==1'b0 && (ReadN ^ WriteN) )

F_SLastN <= 1'b1;

end

else

F_SLastN <= 1'b1;

end

end

// F_LastN indicates that there is one space for only one data

// word in the FIFO.

always @(posedge Clk or negedge RstN)

begin

if(!RstN)

F_LastN <= 1'b1;

else begin

if(FClrN==1'b1) begin

if ((F_FullN==1'b0 && ReadN==1'b0)||

(fcounter == (`FDEPTH-2) && WriteN==1'b0 && ReadN==1'b1))

F_LastN <= 1'b0;

else if(F_LastN==1'b0 && (ReadN ^ WriteN) )

F_LastN <= 1'b1;

end

else

F_LastN <= 1'b1;

end

end

// F_FullN indicates that the FIFO is full.

always @(posedge Clk or negedge RstN)

begin

if(!RstN)

F_FullN <= 1'b1;

else begin

if(FClrN==1'b1)begin

if (F_LastN==1'b0 && WriteN==1'b0 && ReadN==1'b1)

F_FullN <= 1'b0;

else if(F_FullN==1'b0 && ReadN==1'b0)

F_FullN <= 1'b1;

end

else

F_FullN <= 1'b1;

end

end

endmodule

///////////////////////////////////////////////////////////////////

//

//

//Configurable memory block for fifo. The width of the mem

//block is configured via FWIDTH. All the data into fifo is done

//synchronous to block.

//

//Author : Venkata Ramana Kalapatapu

//

///////////////////////////////////////////////////////////////////

module FIFO_MEM_BLK( clk,

writeN,

wr_addr,

rd_addr,

data_in,

data_out

);

inputclk;// input clk.

inputwriteN;// Write Signal to put data into fifo.

input[(`FCWIDTH-1):0]wr_addr;// Write Address.

input[(`FCWIDTH-1):0]rd_addr;// Read Address.

input[(`FWIDTH-1):0]data_in;// DataIn in to Memory Block

output [(`FWIDTH-1):0]data_out;// Data Out from the Memory

// Block(FIFO)

wire[(`FWIDTH-1):0] data_out;

reg[(`FWIDTH-1):0] FIFO[0:(`FDEPTH-1)];

assign data_out= FIFO[rd_addr];

always @(posedge clk)

begin

if(writeN==1'b0)

FIFO[wr_addr] <= data_in;

end

endmodule
